Shimadzu LC Driver for Chromeleon™ 7 - Features
Seamless control of Shimadzu LC

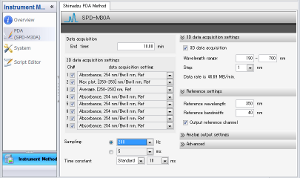

Chromeleon Instrument Method Editor screen
Shimadzu LC control parameters are set through the Chromeleon Instrument Method Editor embedded in the Chromeleon software. These parameters are stored and handled as standard Chromeleon Instrument methods so that the instruments are directly controlled from Chromeleon.
- Creation and modification of instrument methods
- Report output of instrument methods
- Direct control
- Solvent Blending
- RF Detector 4ch support
- Multi column oven (Max 4 ovens)
- System check
- Auto purging
Creation and modification of instrument methods
For Shimadzu instrument control parameters, instrument method creation and modification are possible. The screen layout for Shimadzu instrument control is the same as that of the standard Chromeleon Instrument Method Editor screen, and the created methods are stored as standard Chromeleon method. A control parameter report can be output by Chromeleon.

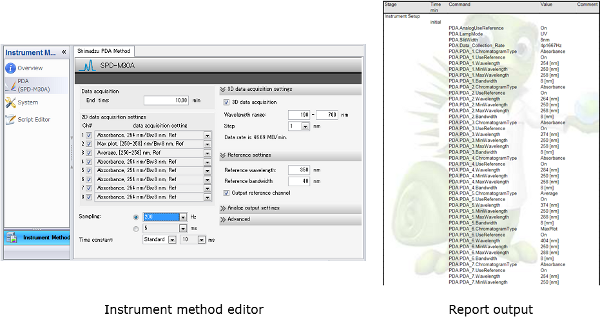

Instrument Method Editor screen and Example of Instrument parameter report output
Direct control and instrument status monitoring
Lamp mode can be directly controlled from Chromeleon. Instrument status can be monitored. System check for instrument consumable parts usage are also possible.

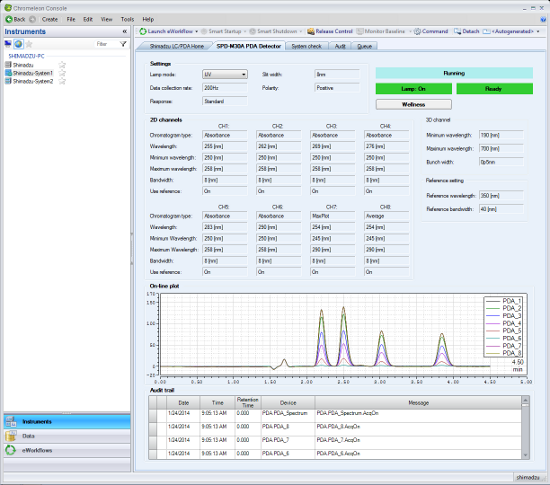

ePanel screen
Digital data acquisition for enhanced reliability

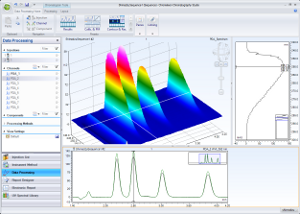

3D data processing screen
In addition to seamless system control, the detector signal is digitally transmitted to the data system. This eliminates the necessity to add an A/D converter for analogue data acquisition, making system validation easier and more robust.
Regulatory compliance support
Full system control uses Chromeleon Instrument Method, and data processing is integrated with Chromeleon software so that the audit trail functions of Chromeleon software are fully utilized. This gives you full confidence in the compliance of the system to regulations such as GLP/GMP and US FDA 21 CFR Part 11.
