System Structure

An evolved nano particle size analyzer for accurate evaluation of nano particles

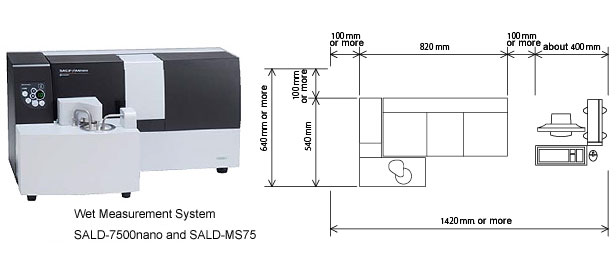

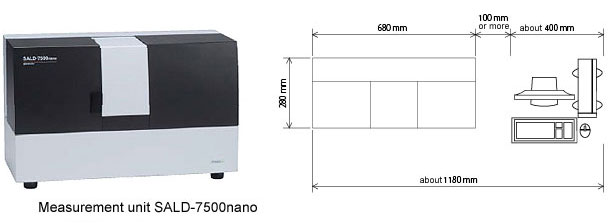

Main unit (Measurement unit): SALD-7500nano

  • Violet semiconductor laser (wavelength: 405 nm) is used for the light source. Maintenance, such as gas replacement, is unnecessary.
  • The detector incorporates 78 elements at the front, one element at the side, and 5 elements at the back for a total of 84 elements. Additionally, high-sensitivity light receptors that support violet semiconductor laser wavelengths are adopted with all detectors.
  • The fixed parts of the cell and cell holder can be pulled out at the front of the unit using a slide mechanism. This makes it easy to mount and replace cells, and to perform maintenance.
  • WingSALD ll software is supplied as standard. It offers versatile data processing and simple, high-speed operation to suit every purpose and processing requirement.

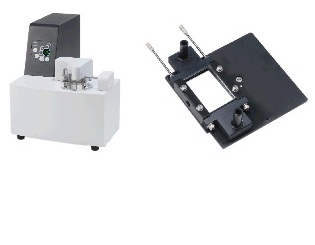

Add optional units to the SALD-7500nano to design a wide range of systems.

The batch cell and the high-concentration sample measurement system can be set in the measurement unit.
Small-volume Measurement System (SALD-7500nano and SALD-BC75)
High-Concentration Sample Measurement System (SALD-7500nano and SALD-HC75)
Ultra Small-Volume Measurement System (SALD-7500nano and SALD-HC75 and “Glass Slides with Indentation”)

Easy Measurement under PC Control
Sampler SALD-MS75

  • Groups of particles are dispersed in a liquid medium and measured as they are circulated between the flow cell, which is placed in the measurement unit, and a dispersion bath in the sampler.
  • The dispersion bath incorporates a stirrer and an ultrasonic sonicator. A pump delivers the dispersed suspension to the flow cell.
  • The pump is specially designed to ensure both liquid medium and the particles are circulated. A stainless ball of 2 mm circulates and it is possible to measure it.
  • It can be controlled from a PC.
  • Most organic solvents can be used as dispersion media.

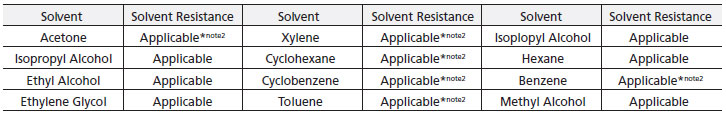

Sample Unit SALD-MS75 Solvent Resistance

Note1

Solvent resistance toward materials used in the passageways of SALD-MS75. Solvent resistance values are representative, and are not certified.

Note2

Only applicable for liquid pump. Not applicable for liquid supply pump.

Note3

Ultrasonic cleaning instruments are needed for the measurement of reference sample.

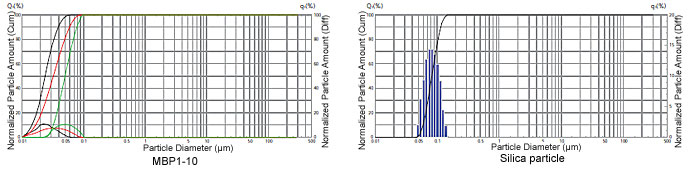

Measurement data

Ideal for Measurement with Small Amounts of Organic Solvent

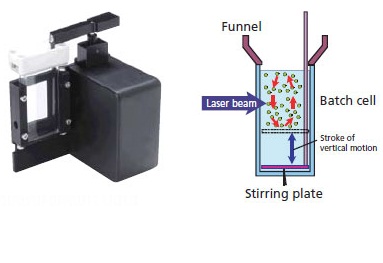

Batch Cell SALD-BC75

  • Measurement is possible with a small amount of sample (i.e., measured particles) and liquid medium (i.e., dispersion medium).
  • The capacity of the batch cell is only 7cm3 an so waste treatment for the suspension canbe performed with relatively small amounts.
  • The vertical motions of the stirring plate prevent sedimentation of the particles.
  • The funnel reduces the possibility of sample spillage.
  • A tetrafluoroethylene resin funnel is provided to reduce the possibility of suspension getting on the hands of the user. It also prevents the cell surface from becoming dirty.

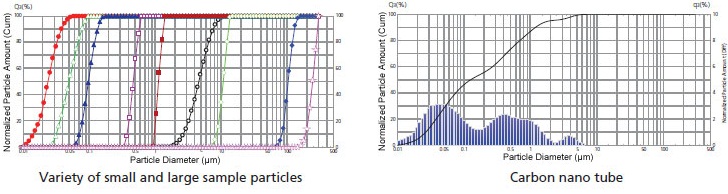

Measurement data

Measurement Samples without Dilution
High-Concentration Sample Measurement System: SALD-HC75

  • High-concentration samples can be measured using the laser diffraction method.
  • Measurement is possible by simply holding the high-concentration sample particles to be measured between two glass slides.
  • Samples for which the particle size distribution would be changed by dilution can be measured in their original state, or with the minimum required level of dilution, and a true image of the measurement object can be obtained.
  • Commercial hand creams, face creams, and rinses can be measured with hardly any pretreatment.

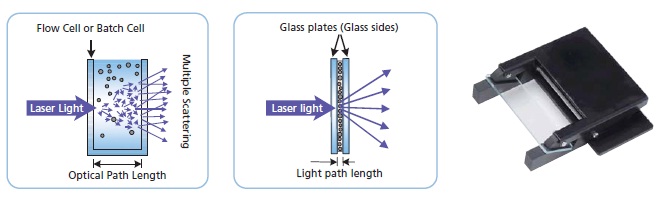

If a standard flow cell or batch cell is used to measure a sample at a high concentration, the long light pathlength results in multiple scattering, making it difficult to obtain accurate measurements.
With this system, however, it is possible to hold the high-concentration sample particles between two glass slides, which shortens the length of the light paths, avoids the negative effects of multiple scattering and makes accurate measurement possible.

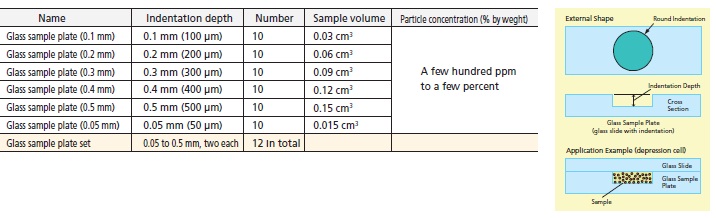

Glass sample plates (glass with indentation) (Option)

Effective for measuring samples with relatively low concentrations, or expensive samples that can only be used in small amounts.

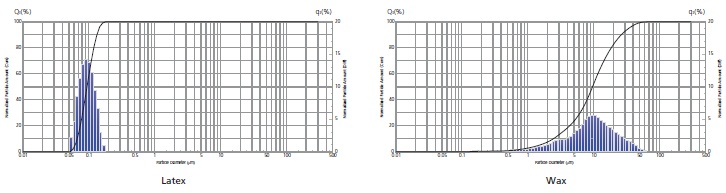

Measurement Data

SALD-7500nano

General Specifications

Measurement principle

Laser Diffraction Method

Measurement range

7 nm (0.007 μm) to 800 μm (when using sampler)
7 nm (0.007 μm) to 400 μm (when using batch cell)
30 nm (0.03 μm) to 280 μm (when using high-concentration sample unit)

Note 1: The measurement range varies according to the shape etc. of the particle.

SALD-7500nano

Measurement unit

Light source

Semiconductor laser (Wavelength 405 nm)

Light detector

Detector elements for violet semiconductor laser Total 84 elements
(78 forward, 1 side, 5 back)

System Compliance

Class 1 Laser Product, CE

Required power supply

AC 100 V±10%, 1 A, 50/60 Hz

Dimensions & weight

Approx. 680 × D280 × H430 mm, Approx.32 kg

Operation environment

Temperature : 10 to 30°C , Humidity : 20 to 80% (no condensation)

Note 2: Reference sample and USB cable (2 m) supplied as standard
Note 3: Ultrasonic cleaning instruments are needed for the measurement of reference sample.

Read more
Show Less

SALD-MS75

Sampler

Dispersing bath

Capacity : 100 / 200 / 300 mL

Sonicator

Frequency : about32 kHz, output : about 40 W

Liquid Pump

Radial pump, maximum flow rate 2000 cm3/min

Liquid Pump Material

Stainless (SUS 304, SUS 316), Tetrafluoroethylene (PTFE),
Perfluoroelastmor (FEP)

Liquid Supply Pump

Diaphragm pump, maximum flow rate : 750cm3/min

Liquid Supply Pump Material

Polypropylene

Flow Cell

Quartz glass

Required power supply

AC 100 V±10%, 2 A, 50/60 Hz

Dimensions & weight

Approx. W390 × D520 × H430 mm, Approx.18 kg

Operating Environment

Temperature: 10 to 30°C, Humidity: 20 to 80% (no condensation)

Note 4: USB cable (2 m) supplied as standard

Read more
Show Less

SALD-BC75

Batch Cell

Cell Material

Quartz glass

Required Liquid Volume

Approx. 5 cm3

Stirrer Mechanism

Up-and-down movement of blade

Dimensions & weight

Approx. W100 × D120 × H140 mm, Approx. 0.8 kg

Operating Environment

Temperature: 10 to 30°C, Humidity: 20 to 80% (no condensation)

Read more
Show Less

SALD-HC75

High-concentration Sample Measurement System

Cell Material

Borosilicate glass

Required Liquid Volume

Approx. 0.15 cm3

Dimensions & weight

Approx. W20 × D100 × H9 mm, Approx. 0.2 kg

Operating Environment

Temperature: 10 to 30°C, Humidity: 20 to 80% (no condensation)

Read more
Show Less

WingSALD II

Measurement and Data Display Functions

Measurement of Particle Size Distribution

Allows measurements using measurement assistant unction (interactive process based on SOP) and manual mode

Automatic Calculation of Refractive Index

Automatic calculation by Light Intensity Distribution Reproduction (LDR) method based on specified substance name or range

Real-Time Display

Particle size distribution / Light intensity distribution simultaneous display

Recalculation of Particle Size Distribution

Max. 200 data batch calculation or individual data calculation

Display of Particle Size Distribution Data

Max. 200 data overlay graph or individual data graph

Display of Light Intensity Distribution

Max. 200 data overlay graph or individual data graph

Diagnostics/Adjustments

Self-diagnostic functions

Statistical Data Processing

Max. 200 data (Max. 200 data overlay graph)

Time Series Analysis

Max. 200 data

3-Dimensional Graph

Max. 200 data

Data Transfer via Clipboard

Image Output, Image Output

Data Sorting

Sort by file name, sample ID, sample number, or refractive index.

Note 5: The Light Intensity Distribution Reproduction (LDR) method calculates the refractive index from the conformity between the measured light intensity distribution pattern and the light intensity distribution data reproduced (calculated) from the particle size distribution data. LDR is a proprietary method developed by Shimadzu. Two papers have been published on this method. It is sometimes called the "Kinoshita Method" at academic conferences.

Read more
Show Less

WingSALD II

Output Conditions

Particle Size Distribution (μm) Number of Divisions

Fixed 51 / 101 divisions / Optional (can be set by user) 51 divisions * 10 tables

Particle Mass Distribution (%) Number of Divisions

Fixed 51 divisions, Optical (can be set by user) 51 divisions * 10 tables

Dimension of Particle Amount

Count, length, area or volume

Expression of Cumulative Distribution

Undersize, oversize

Expression of Data Frequency

q, q / Δ×, q / Δlog×

Smoothing Level

10 Level

Distribution Function Fitting

Rosin-Rammler distribution, logarithmic Gaussian distribution

Data Shifting

±10 levels

Report Functions

Batch output possible by selecting single data, overlay data, statistical data, time-series data, or 3D data

Read more
Show Less

WingSALD II

Data Analysis

Scattering Angle Evaluation

Max. 200 data overlay graph or individual data graph

Data Conversion Function

Emulation of particle distribution data by other instruments or measuring principles

Mixing Simulation Function

Max. 6 points

Data Connection Function

2 data connections

Continuous Measurements Function

Measurement interval: 1 s min., Save up to 200 data points

Read more
Show Less

SALD-7500nano

Measurement unit

Measurement range

7 nm to 800 µm

Light source

Violet semiconductor laser (405 nm wavelength)

Detection elements

84 elements

Options

Batch cell, multifunction sampler, high-concentration measurement system

Read more
Show Less
