EHF-TV1kNm-020

Maximum capacity : Dynamic / static

±1/±1.5kN/m

Loading Method

Electric-hydraulic servo (cross-looped system)

Max. torsion angle

±50 deg

Cycle speed and amplitude (sine wave)

See amplitude characteristics charts.

Control mode

Torque control and torsion angle control

Static accuracy : Torque

Within ±1 % of indicated value or within ±0.05 % of dynamic rating, whichever is greater

Static accuracy : Torsion angle

Within ±1.5 % of indicated value or within ±0.15 % of dynamic rating, whichever is greater

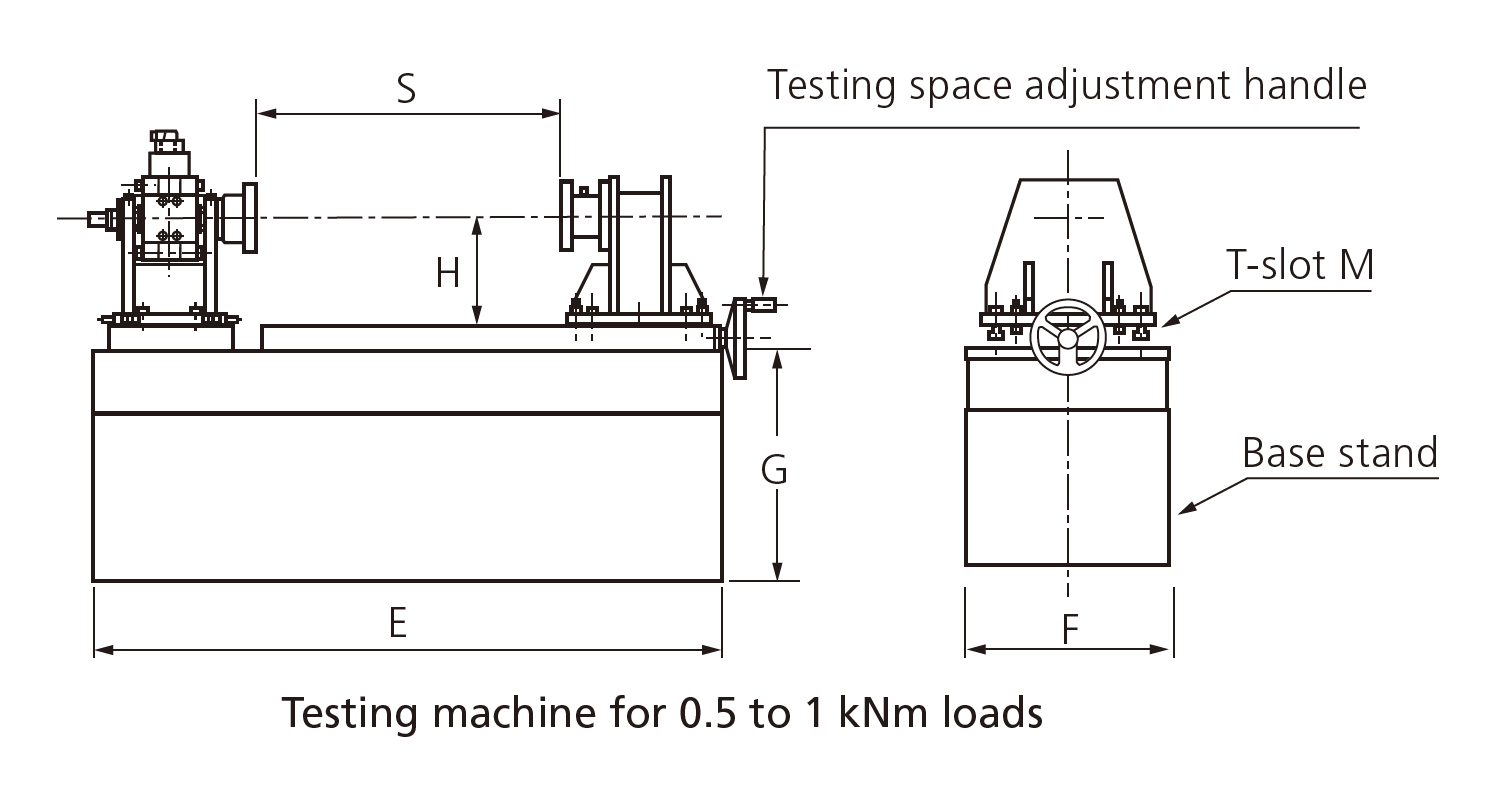

Loading frame (testing space) : S : Flange spacing

0 to 1000 mm

Loading frame (testing space) : H : Height at center of torque

300mm

Loading frame (testing space) : F×E : Table area(width × length)

700×1800mm

Loading frame (testing space) : G : Base stand height

600mm

Loading frame (testing space) : M : T-slot size (nominal)

22mm

Loading frame (testing space) : Weight (including actuator)

Approx. 950 kg

Hydraulic power supply unit used : Model

QF-20B

Read more
Show Less

EHF-TV05kNm-010

Maximum capacity : Dynamic / static

±0.5/±0.75kN/m

Loading Method

Electric-hydraulic servo (cross-looped system)

Max. torsion angle

±50 deg

Cycle speed and amplitude (sine wave)

See amplitude characteristics charts.

Control mode

Torque control and torsion angle control

Static accuracy : Torque

Within ±1 % of indicated value or within ±0.05 % of dynamic rating, whichever is greater

Static accuracy : Torsion angle

Within ±1.5 % of indicated value or within ±0.15 % of dynamic rating, whichever is greater

Loading frame (testing space) : S : Flange spacing

0 to 1000 mm

Loading frame (testing space) : H : Height at center of torque

300mm

Loading frame (testing space) : F×E : Table area(width × length)

600×1800mm

Loading frame (testing space) : G : Base stand height

600mm

Loading frame (testing space) : M : T-slot size (nominal)

18mm

Loading frame (testing space) : Weight (including actuator)

About 830 kg

Hydraulic power supply unit used : Model

QF-10B

Read more
Show Less

EHF-TV2kNm-040

Maximum capacity : Dynamic / static

±2/±3kN/m

Loading Method

Electric-hydraulic servo (cross-looped system)

Max. torsion angle

±50 deg

Cycle speed and amplitude (sine wave)

See amplitude characteristics charts.

Control mode

Torque control and torsion angle control

Static accuracy : Torque

Within ±1 % of indicated value or within ±0.05 % of dynamic rating, whichever is greater

Static accuracy : Torsion angle

Within ±1.5 % of indicated value or within ±0.15 % of dynamic rating, whichever is greater

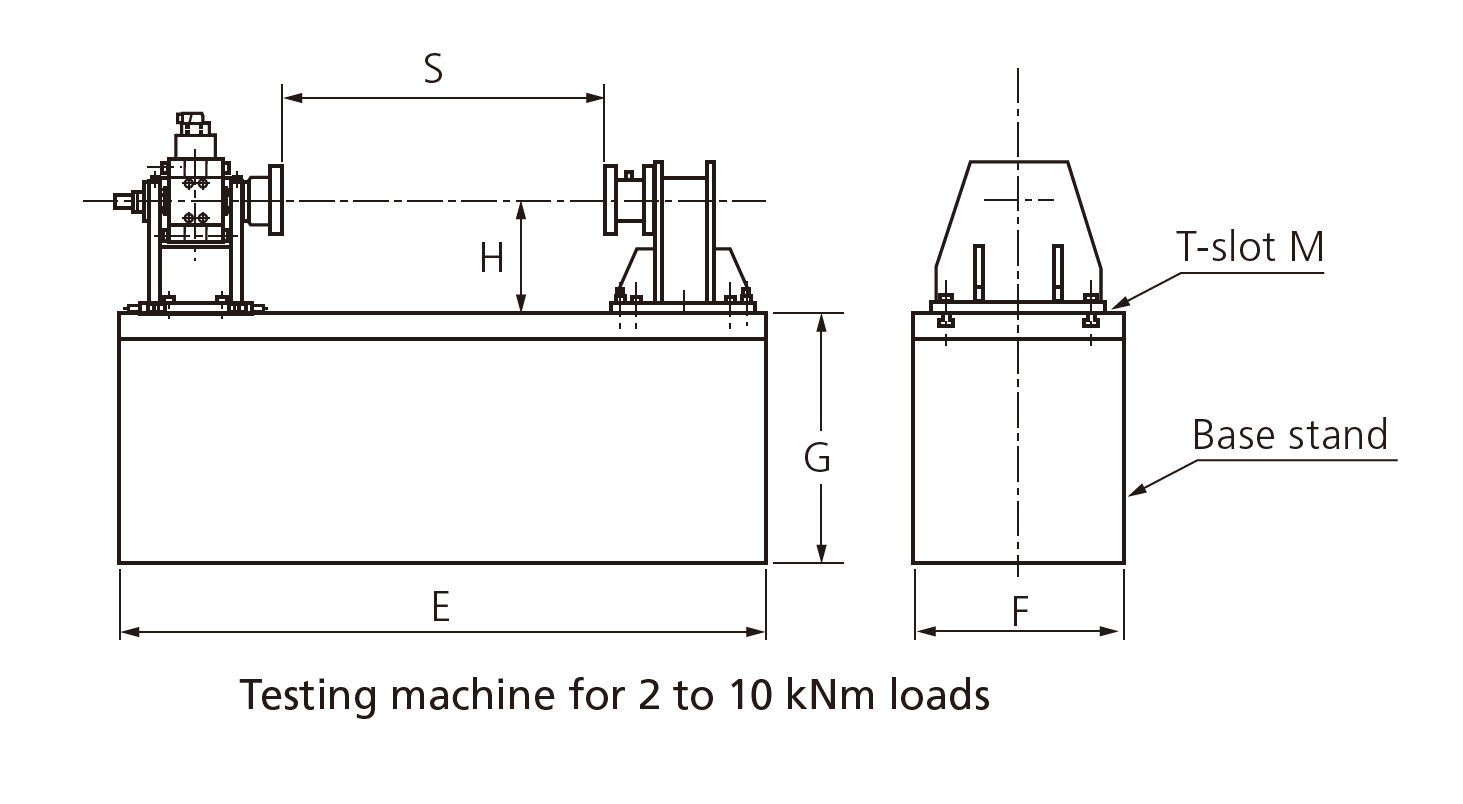

Loading frame (testing space) : S : Flange spacing

0 to 1000 mm

Loading frame (testing space) : H : Height at center of torque

350mm

Loading frame (testing space) : F×E : Table area(width × length)

800×2000mm

Loading frame (testing space) : G : Base stand height

700mm

Loading frame (testing space) : M : T-slot size (nominal)

22mm

Loading frame (testing space) : Weight (including actuator)

Approx. 1700 kg

Hydraulic power supply unit used : Model

QF-40B

Read more
Show Less

EHF-TV5kNm-070

Maximum capacity : Dynamic / static

±5/±7.5kN/m

Loading Method

Electric-hydraulic servo (cross-looped system)

Max. torsion angle

±50 deg

Cycle speed and amplitude (sine wave)

See amplitude characteristics charts.

Control mode

Torque control and torsion angle control

Static accuracy : Torque

Within ±1 % of indicated value or within ±0.05 % of dynamic rating, whichever is greater

Static accuracy : Torsion angle

Within ±1.5 % of indicated value or within ±0.15 % of dynamic rating, whichever is greater

Loading frame (testing space) : S : Flange spacing

0 to 1000 mm

Loading frame (testing space) : H : Height at center of torque

400mm

Loading frame (testing space) : F×E : Table area(width × length)

800×2200mm

Loading frame (testing space) : G : Base stand height

700mm

Loading frame (testing space) : M : T-slot size (nominal)

22mm

Loading frame (testing space) : Weight (including actuator)

Approx. 3200 kg

Hydraulic power supply unit used : Model

QF-70B

Read more
Show Less

EHF-TV10kNm-110

Maximum capacity : Dynamic / static

±10/±15kN/m

Loading Method

Electric-hydraulic servo (cross-looped system)

Max. torsion angle

±50 deg

Cycle speed and amplitude (sine wave)

See amplitude characteristics charts.

Control mode

Torque control and torsion angle control

Static accuracy : Torque

Within ±1 % of indicated value or within ±0.05 % of dynamic rating, whichever is greater

Static accuracy : Torsion angle

Within ±1.5 % of indicated value or within ±0.15 % of dynamic rating, whichever is greater

Loading frame (testing space) : S : Flange spacing

0 to 1200 mm

Loading frame (testing space) : H : Height at center of torque

400mm

Loading frame (testing space) : F×E : Table area(width × length)

1000×2500mm

Loading frame (testing space) : G : Base stand height

Base stand is optional.

Loading frame (testing space) : M : T-slot size (nominal)

22mm

Loading frame (testing space) : Weight (including actuator)

Approx. 3200 kg (excluding base stand)

Hydraulic power supply unit used : Model

QF-110B

Read more
Show Less
