FluxEdge™ Modules for Gas Chromatograph

Add Bookmark

Specifications

Max. Pressure 400 kPa
FluxEdge Module Max. Operating Temp. Brevis GC-2050 + FX-40-SB-T: 100 °C
(independent temperature control)
GC column oven maximum operating temperature: 350 °C
Nexis GC-2030 (FX-TTT) : 60 °C
(controlled by GC column oven)
Sample Type Gas

Lineup

Model Max. Number of Modules Installed
Nexis GC-2030 3
Brevis GC-2050 1

Instrument/ Size and Weight

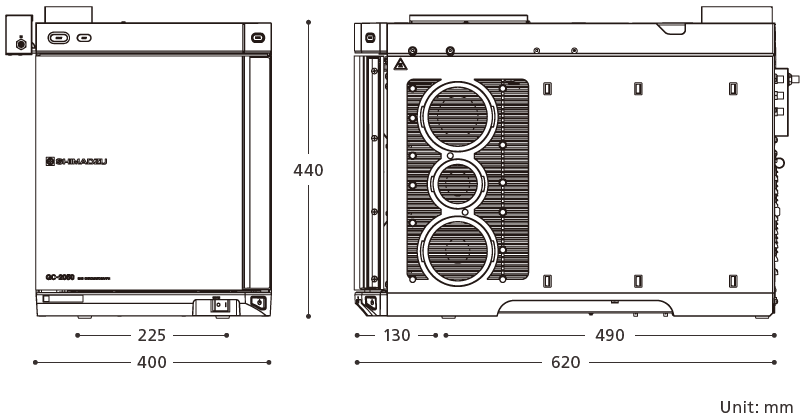

  • Brevis GC-2050 + FX-40-SB-T

    Height 440 mm
    Width 400 mm
    Depth 620 mm
    Weight 30 kg

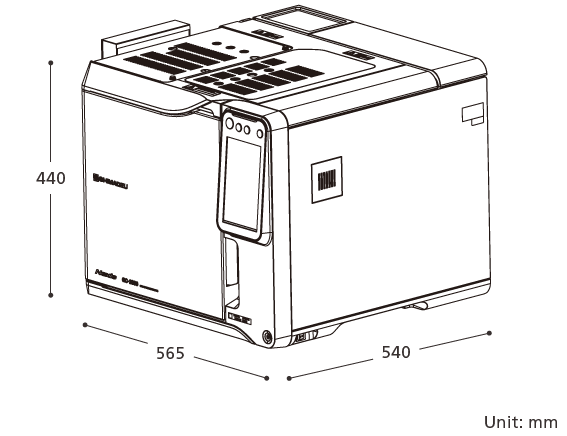

  • Nexis GC-2030 (FX-TTT)

    Height 440 mm
    PICD Model 500 mm
    Width 565 mm
    Depth 540 mm
    Weight 50 kg

  • This is information for when the FX-40-SB-T is installed on the GC-2050.
    Projections are excluded.

  • This information excludes piping at the rear of the instrument.



  • GC-2050
  • GC-2030
