MOC-120H Features

Large Pan

A large sample pan (130mm diameter) enables a large amount of sample to be placed evenly in a thin layer. This results in accurate and fast measurements with minimal drying non-uniformities.

Long-life heater

A mid-wave infrared quartz heater provides effective drying without interference for a wide range of samples. In addition to the excellent drying performance, it offers a long operational life of 20,000 to 30,000 hours.

UniBloc sensor

UniBloc technology

The internal precision weighing balance is engineered with a Shimadzu UniBloc cell. The mechanism provides excellent stability and a long operational life against repeated temperature changes, enabling easy measurements down to 0.001g.

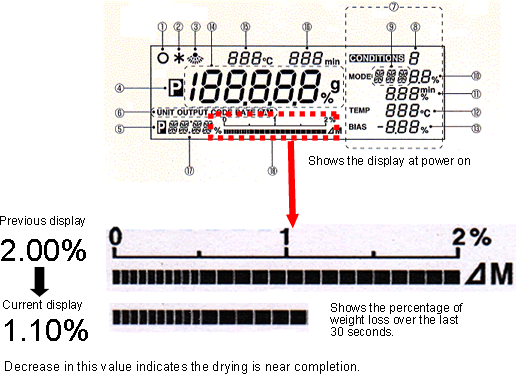

Moisture vaporization monitoring

The moisture vaporization rate is monitored and can be visually seen on a bar graph display. This is useful to know as the measurement nears completion. It updates every 30 seconds.

Image of Display

Various measuring modes

Ending modes

Automatic ending mode

Automatic ending mode

Automatically ends measurement when moisture loss over the previous 30 seconds becomes smaller than specified percentage.

Timed ending mode

Timed ending mode

Automatically ends measurement when the specified amount of time has elapsed.

Three drying modes besides standard drying mode

Rapid drying mode

Rapid drying mode

First dries with the highest temperature for the specified period, then shifts to the specified temperature, thus shortening measurement time.

Slow drying mode

Slow drying mode

Mildly heats samples that may solidify in the surface or samples that reduce under high temperature.

Step drying mode

Step drying mode

Allows changing drying conditions step by step. This feature is useful when measuring samples that contain a large amount of water (up to 5 steps).

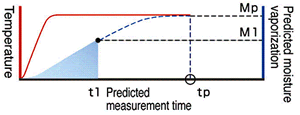

Predictive measuring mode

Predictive measuring mode

With preparatory measurements of the sample, the final result is predicted from the drying process. As a result, it saves a fair amount of time during repeated measurements.

Auto-taring mechanism

The MOC-120H is equipped with a unique auto-taring mechanism, which adjusts the zero drift automatically and ensures high accuracy, even when measuring during an extended period.

Bias correction function

The bias correction function allows adjustment to the data obtained by other measuring methods or other testers.

Backlight LCD

LCD with Backlight

Large backlit LCD is easily read even under poor lighting conditions.

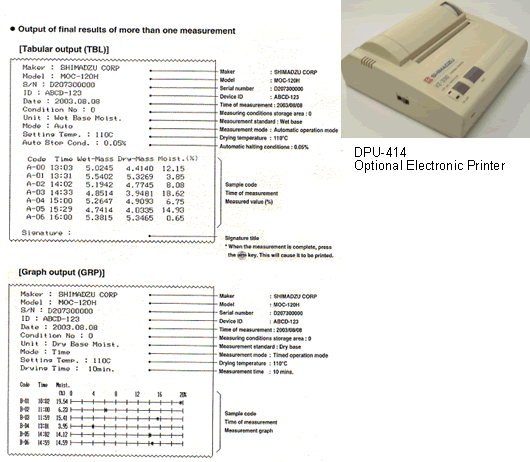

Data memory and printer output

Optional Electronic Printer

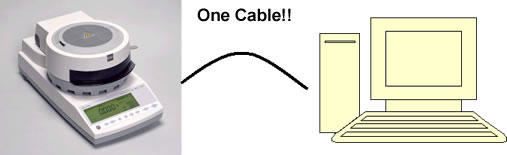

WindowsDirect

Image of table

Shimadzu's unique Windows® Direct function is standard. Measurement data can be easily sent to an application such as Excel®. After import to Excel, data can be processed as one pleases, using familiar functions such as statistical calculations and graph charting. Connection requires only a single RS232C cable. Interface connections and software installations are completely unnecessary.

WindowsDirect
