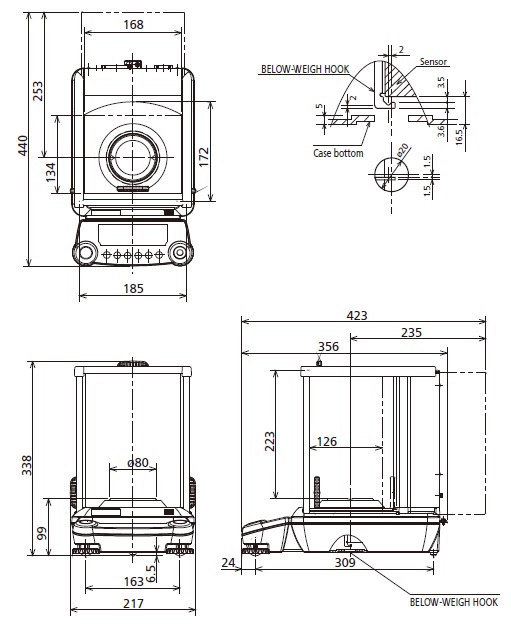

Physical Dimensions

Measurements in mm. 1mm=.03937"

AUW220D

Capacity

82 g/220 g

Minimum display

0.01 mg/0.1 mg

Capacity

120 g

Minimum display

0.1 mg

AUW220

Capacity

220 g

Minimum display

0.1 mg

AUW320

Capacity

320 g

Minimum display

0.1 mg

AUX120

Capacity

120 g

Minimum display

0.1 mg

AUX220

Capacity

220 g

Minimum display

0.1 mg

AUX320

Capacity

320 g

Minimum display

0.1 mg

AUY120

Capacity

120 g

Minimum display

0.1 mg

AUY220

Capacity

220 g

Minimum display

0.1 mg

AUW220D

Capacity

220 g / 82 g

Minimum display

0.1 mg / 0.01 mg

Repeatability (Standard deviation, σ)

≤0.1 mg (large range)
≤0.05 mg (small range)

Linearity

±0.2 mg (large range)
±0.1 mg (small range)

Response time (typical)

3 s (large range)
15 s (small range)

Pan Size

80 mm dia. approx

Calibration modes

PSC, Clock-CAL, Touch-key with built-in or external weight

Read more
Show Less

AUW120D

Capacity

120 g / 42 g

Minimum display

0.1 mg / 0.01 mg

Repeatability (Standard deviation, σ)

≤0.1 mg (large range)
≤0.02 mg (small range)

Linearity

±0.2 mg (large range)
±0.03 mg (small range)

Response time (typical)

3 s (large range)
12 s (small range)

Pan Size

80 mm dia. approx

Calibration modes

PSC, Clock-CAL, Touch-key with built-in or external weight

Read more
Show Less

AUW120D

Capacity

42 g/120 g

Minimum display

0.01 mg/0.1 mg
